The first real snowfall does not care whether your trailer is ready. If you run a snow-removal operation, whether that means a two-truck landscaping crew or a solo operator moving a skid steer between plow routes, the trailer is one of the most important pieces in the entire setup. A tire, brake, bearing, wiring, coupler, or securement failure at 4 a.m. during a storm does more than cost time. It can damage equipment, put the public at risk, and cost you contracts that depend on dependable service.
Before the ground freezes and the calls start coming in, work through this checklist with the trailer unloaded, parked on level ground, and safely supported whenever a wheel must be raised. Some checks take five minutes. Others may reveal that the trailer needs parts, brake service, bearing work, welding, or a closer load-capacity review at Spencer Trailers. Either way, it is better to handle the problem before the season than during the first overnight storm.
Choosing the Right Trailer for Snow Equipment
Start with actual weights, not the equipment name or what another contractor says works. A current Bobcat S650 skid-steer loader has a published operating weight of about 7,900 lbs, while a CASE TR340B compact track loader is about 10,000 lbs before you add a snow pusher, plow, bucket, forks, spare cutting edges, chains, fuel cans, tools, or other route equipment. Attachment weights vary widely, and the trailer’s own empty weight also counts against its GVWR. The only dependable calculation is trailer payload capacity equals GVWR minus the trailer’s actual empty weight, followed by comparison with scale-verified cargo weight, tongue or pin weight, tire capacities, axle ratings, hitch rating, tow-vehicle payload, and the tow vehicle’s GCWR.
There is no single trailer length or GVWR that fits every snow contractor. Many skid-steer operations can work with an 18- to 24-foot equipment trailer in the 15,500- to 18,000-lb GVWR range, while a heavier track loader, multiple attachments, palletized salt, or a need for more deck space can justify a 20,000- to 24,000-lb configuration or a heavier gooseneck. Diamond C’s LPX Low Profile Extreme Duty Equipment Trailer is currently offered in 16- to 30-foot lengths with 15,500- to 24,000-lb GVWR packages. Standard deck width is generally 80 or 82 inches depending on package, with a 102-inch Max Width package available on compatible builds. Current LPX configurations use Lippert axles, beginning with tandem 7,000-lb axle packages and offering heavier tandem or triple-axle upgrades. Max Ramps and the full-width X-Ramp are available on compatible lengths and width packages, and the low-profile design improves the loading angle without relying on an arbitrary deck-height claim. H&H also offers current work-ready choices, including the 102-inch-wide Low Profile Deckover in 20- to 40-foot lengths and heavier Low Profile Dual Tandem Deckover configurations for larger payload needs. For commercial operators, remember that a Class A CDL threshold is based on the combination: a GCWR of 26,001 lbs or more with a towed unit over 10,000 lbs GVWR, subject to applicable exemptions and operating circumstances. A trailer over 10,000 lbs by itself does not automatically create a Class A CDL requirement if the combination remains below 26,001 lbs.
If you are using a 7,000- or 9,900-lb utility or landscape trailer for skid-steer work, do not assume it is acceptable because the machine physically fits between the rails. Read the certification label, record the GVWR and GAWR, find the trailer’s actual empty weight, and weigh the complete loaded combination by axle. Check that the tires, wheels, coupler, safety chains, hitch, receiver, ball, and tow vehicle are all rated for the load. Browse our current equipment trailer inventory to compare properly rated equipment, tilt, deckover, and gooseneck options before winter demand reduces selection.
Salt Storage: What You Need to Know Before You Load
Bulk deicing salt is commonly estimated at about 80 lbs per cubic foot, although actual density changes with product size, moisture, and compaction. One cubic yard can therefore weigh roughly 2,100 to 2,200 lbs. A pallet containing forty-nine 50-lb bags weighs 2,450 lbs before the pallet and wrapping are counted. Two pallets add nearly 5,000 lbs; three are roughly 7,350 lbs. Combine that with a 7,900- to 10,000-lb loader, an attachment, and route gear, and the cargo alone can exceed the payload of many 15,500- or 18,000-lb trailers after the trailer’s own weight is deducted from GVWR.
Salt is also extremely aggressive toward steel, wiring connections, fasteners, brake hardware, suspension parts, and any damaged coating. Diamond C’s current premium trailers use the DM Difference Maker multi-stage coating system, but even a durable factory finish cannot protect chipped edges, exposed welds, untreated hardware, or trapped brine indefinitely. If the trailer is exposed to road salt or carries bagged salt, rinse it promptly with fresh water when temperatures allow, paying close attention to crossmembers, suspension hangers, axle tubes, brake backing plates, the tongue or gooseneck structure, jack mounts, coupler area, rub rails, and electrical junctions. Avoid directing high-pressure water into bearings, seals, connectors, or brake assemblies, and never apply oil or corrosion inhibitor to brake friction surfaces.
A few practical moves for salt hauling:
- Use a properly secured poly liner, pallet containment system, or purpose-built bin that is compatible with the trailer and prevents bags or loose material from shifting, leaking, or contacting sharp edges. A tarp controls weather exposure but does not replace cargo securement.
- Do not leave pallets or loose salt on the trailer between jobs. Long-term contact with salt and trapped moisture accelerates corrosion, and leaving a loaded trailer parked makes it easier to overlook an overloaded axle, underinflated tire, weakened deck board, or compromised spring and suspension component.
- Consider a Diamond C FMAX gooseneck when you need a 102-inch flat deck, longer pallet space, heavier available GVWR, and gooseneck weight distribution. FMAX models span multiple real configurations and GVWR classes, so select the exact model, floor, crossmember spacing, axle package, tire package, loading system, and tow vehicle based on the calculated payload rather than assuming every FMAX carries the same load.
- After each salt-heavy period and again at season end, wash accessible surfaces thoroughly, allow the trailer to dry, inspect for coating damage, clean and protect electrical connections as specified by the component manufacturer, and repair exposed steel with a compatible coating. Keep corrosion products away from tires, wood, wiring insulation, hydraulic hoses, and all brake surfaces.
Tie-Downs in Cold Weather: Don’t Trust Last Season’s Straps
Ratchet straps do not automatically lose their rated strength simply because the temperature drops below freezing, but winter conditions make damaged gear harder to use and easier to misjudge. Wet webbing can freeze stiff, ice can prevent a ratchet pawl from seating, salt can corrode hooks and ratchet frames, and frozen mud can hide cuts, broken stitching, abrasion, chemical damage, or an unreadable WLL tag. Any strap with missing identification, knots, melted fibers, edge cuts, severe abrasion, damaged stitching, bent hardware, or a ratchet that will not fully engage should be removed from service.
Four-point securement is a sound minimum practice for a skid steer or compact track loader. For commercial motor vehicles subject to federal cargo-securement rules, wheeled or tracked equipment weighing 10,000 lbs or more requires at least four tiedowns positioned as close as practical to the front and rear or attached to manufacturer-designated securement points. The aggregate working load limit of the tiedowns must be at least one-half the cargo weight, and the effective rating is limited by the weakest strap, chain, binder, hook, connector, machine attachment point, or trailer anchor in the system. For an 8,000-lb machine, the required aggregate WLL is at least 4,000 lbs. With four direct tiedowns running from the trailer to the machine, each tiedown contributes one-half of its marked WLL to the aggregate calculation, so the complete configuration and attachment geometry matter. Buckets, plows, pushers, forks, and other accessories must also be lowered, immobilized, and separately secured when the machine’s own locking system does not adequately prevent movement.
A few things that improve tie-down performance in winter conditions:
- Use properly marked transport chain and binders when the load, route, and equipment call for them. A 5/16-inch Grade 70 transport chain commonly carries a 4,700-lb WLL, but the system rating can never exceed the lowest-rated chain, binder, hook, anchor, or attachment point. Grade 70 transport chain is for load securement, not overhead lifting.
- Keep ratchets, binders, hooks, and latches free of packed snow, ice, salt, and grit. Use only a lubricant approved for the hardware, wipe away excess, and keep every lubricant far from tires, deck traction surfaces, and brake components.

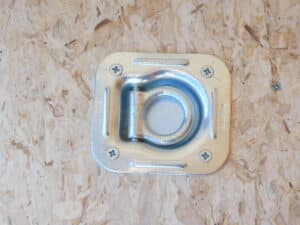

- Inspect every trailer anchor for cracked welds, bent hardware, elongation, deep pitting, or coating failure. Current LPX equipment-trailer configurations include four 5/8-inch D-rings along with a rub rail, stake pockets, and pipe spools, but each securement point must still be used within its published rating and intended direction of pull. Never substitute an unrated rail, ramp hinge, jack bracket, or light guard as an anchor.
- Attach tiedowns to the loader manufacturer’s designated transport points and tighten them evenly. Do not route a chain or strap across hydraulic hoses, cylinders, electrical harnesses, sharp track-frame edges, or rubber tracks unless the equipment manufacturer specifically permits that method and suitable edge protection is used.
Cold-Weather Brake Performance
Trailer brakes do not normally freeze solid merely because the air is cold, but winter exposes weak batteries, corroded grounds, damaged wiring, contaminated connectors, poorly adjusted brakes, worn friction material, leaking seals, and incorrect controller settings. In Indiana, a trailer or semitrailer with a gross weight of at least 3,000 lbs when operated on a highway must have brakes adequate to control, stop, and hold the trailer; the driver must be able to apply them from the tow-vehicle cab, and the system must automatically apply the trailer brakes in an accidental breakaway. That makes brake and breakaway inspection a legal as well as practical pre-season task.
Electric Drum Brakes
Electric drum brakes remain common on equipment trailers. The tow vehicle’s brake controller sends current to the trailer brake magnets, which actuate the shoes inside the drums. A light film of surface rust can develop after storage and may clean up during controlled brake applications, but persistent grinding, pulling, weak braking, wheel lockup, overheating, or uneven response is not something to dismiss. Inspect the drums, shoes, magnets, adjusters, seals, wiring, and bearings according to the axle manufacturer’s service procedure, then set controller gain in a safe area with the trailer loaded as it will be used. Brake performance should be smooth and proportional without relying on the tow vehicle to stop the entire combination.
Inspect the 7-way connector, junction box, brake wiring, and grounds under load, not only with a visual check. Loose or corroded connections add resistance and reduce voltage available to the magnets. Use a meter, clamp ammeter, brake test tool, or scan function appropriate to the system, and compare current draw or resistance with the specification for the exact brake size and axle package rather than using one universal ohm value. Current Diamond C premium LPX, HDT, FMAX, LPT, WDT, and DEC configurations use Lippert axle packages. Diamond C’s 2026 heavy-duty rollout also adds Lippert trailer ABS on many 8,000-lb-and-higher axle packages and offers it on selected 7,000-lb packages. ABS can improve control, and app-based diagnostics can improve troubleshooting, especially when poor weather exposes an intermittent fault. Neither feature replaces correct adjustment, sound wiring, good tires, or routine inspection.
Breakaway Systems
The breakaway system is a dedicated battery, switch, pin, and lanyard arrangement that applies the trailer brakes if the trailer separates from the tow vehicle. Test the battery’s state of charge and the system’s operation before the season and periodically during use. Follow the breakaway-kit and brake-controller instructions; many manufacturers direct you to disconnect the trailer’s 7-way plug from the tow vehicle before pulling the breakaway pin so the controller is not damaged. With the trailer safely secured, pull the pin only as instructed, verify that the brakes apply, reinstall the pin completely, and recharge the battery after testing. Do not use the breakaway switch as a parking brake. Replacement batteries vary by system, so match the specified voltage, chemistry, capacity, terminals, charger, and enclosure rather than buying solely by price or physical size.
Hydraulic Disc Brakes (Higher-End Equipment Trailers)
Electric-over-hydraulic disc brakes are available on current LPX configurations and selected heavy Diamond C gooseneck packages. A compatible electric-over-hydraulic actuator converts the brake-controller signal into hydraulic pressure at the calipers. Disc systems can provide strong, consistent braking, good heat management, and easier visual inspection, but they add an actuator, hydraulic fluid, hoses, fittings, calipers, and controller-compatibility requirements. Before winter, inspect for leaks, cracked hoses, seized slides, uneven pad wear, damaged rotors, moisture-contaminated fluid, weak batteries, and slow actuator response. Confirm that the tow vehicle’s integrated controller supports electric-over-hydraulic brakes; if it does not, use a properly matched aftermarket controller. Ask about disc-brake availability when ordering, but choose it as part of a complete axle, tire, brake, controller, and maintenance plan rather than treating it as a maintenance-free upgrade.
A Pre-Season Check Table
| Item | What to Check | Pass Condition |
|---|---|---|
| Tire pressure | Check every tire cold against the trailer placard, tire load/inflation information, and manufacturer instructions; inspect tread, sidewalls, valve stems, age, and load rating | Correct cold pressure for the installed tire and load; no cuts, bulges, exposed cords, weather cracking, leaks, or inadequate capacity |
| Lug nuts | Torque in the specified sequence with a calibrated torque wrench using the value for the exact stud size, wheel material, and hub; recheck after wheel service as directed | All correct hardware present, seated, undamaged, and torqued to the trailer or axle manufacturer’s specification |
| Wheel bearings | Check grease or oil level, seals, hub temperature history, noise, smooth rotation, and end play; service at the specified interval | No leakage, contamination, roughness, abnormal heat, noise, or excessive play |
| Brake magnets | Measure circuit current or resistance using the procedure and values for the exact brake assembly; inspect magnet faces, shoes, drums, adjusters, and wiring | Readings within the component specification and balanced across comparable brakes; no short, open circuit, glazing, contamination, or abnormal wear |
| Breakaway battery | Check charge indicator or voltage, inspect wiring and lanyard, disconnect the 7-way when required by the manufacturer, and test brake application | Battery passes its specified test, switch and cable move freely, pin seats fully, and all trailer brakes apply during the test |
| Coupler/gooseneck socket | Verify correct ball size and rating; inspect latch, adjustment, safety pin, mounting bolts, welds, wear surfaces, and gooseneck or bumper-pull structure | Coupler fully closes and locks on the correct ball with no cracks, looseness, excessive wear, deformation, or missing retainer |
| Safety chains | Inspect chains, hooks, latches, attachment points, and routing for wear, cracks, twists, stretching, corrosion, or dragging damage | Correct chains and hooks for the trailer, sound attachments, working latches, adequate rating, and enough length for turns without ground contact |
| Deck surface | Inspect treated lumber or steel floor, screws, board caps, crossmembers, dovetail, ramps, hinges, traction surfaces, and salt damage | Structurally sound with no loose boards, rust-through, cracked members, raised fasteners, soft spots, sharp edges, or unsafe loading surface |
| Lighting | Test tail, clearance, marker, license, brake, turn, and reverse or work lights if equipped; inspect reflectors, lenses, harness, connector, and grounds | All required lamps and reflectors clean, visible, correctly colored, securely mounted, sealed, and operating without flicker |
| Tie-down anchors | Inspect D-rings, rub rails, stake pockets, pipe spools, welds, and surrounding frame for cracks, bending, elongation, or corrosion | Only rated anchors used; no cracked welds, deformation, deep pitting, looseness, or damage that reduces capacity |
Lighting and Visibility in Winter Conditions
Trailer-lighting failures in winter commonly trace back to moisture intrusion, damaged harnesses, corroded connector terminals, poor grounds, impact damage, or road-salt exposure. Freeze-thaw cycles can turn a small seal failure into an intermittent fault, and darkness, blowing snow, and road spray make even one failed marker or turn lamp more dangerous. Test the lights with the truck running, move the harness and connector gently to expose intermittent faults, and inspect the trailer’s reflectors as carefully as the lamps.
Sealed LED lighting is the right standard for a work trailer, and current Diamond C LPX configurations include all-LED lights with a sealed wiring harness. LEDs perform well in cold weather and draw less current than incandescent bulbs, but their low heat output means snow and ice may remain on the lens instead of melting away. Clear every lamp and reflector before departure and recheck them during long storm shifts. If an older trailer still uses damaged or obsolete incandescent housings, replace them with road-legal sealed LED assemblies that match the required lamp function, color, visibility angle, connector, and mounting style rather than choosing a kit by price alone.
Keep the 7-way connector capped and supported when it is not plugged into the truck. Clean terminals with the correct electrical-contact product, repair loose sockets instead of bending pins repeatedly, and apply dielectric protection only as recommended for that connector. Inspect the trailer-side ground path, battery grounds, junction-box terminals, and frame bonding points. A chassis ground must contact clean metal through sound hardware and then be protected against corrosion; tightening a ring terminal over paint, powder coat, rust, or scale creates resistance and intermittent failures. On trailers with sealed harnesses and dedicated ground conductors, repair the harness correctly rather than adding random frame grounds that can hide the original fault.
Do You Actually Have the Right Trailer for the Work?
Here is the question worth asking before winter: was your current trailer selected for the work you do now, or for the smaller operation you had several years ago? Many snow contractors begin with a utility trailer used for mowers, ATVs, or compact lawn equipment. The route grows, the loader gets heavier, the attachments get wider, salt pallets get added, and the trailer never receives the same upgrade. A trailer can look level and tow down the road while still exceeding GVWR, an axle rating, tire capacity, hitch rating, tow-vehicle payload, or GCWR.
If you routinely load a skid steer or track loader, a plow or snow pusher, spare attachments, and two pallets of salt before driving at 3 a.m. in poor visibility, that is not a load to guess at. A 7,000-lb tandem utility trailer or 9,900-lb landscape trailer may be perfectly useful within its intended capacity, but it is not an automatic match for commercial loader transport. Overloading accelerates tire heat, bearing wear, brake wear, suspension fatigue, frame stress, coupler wear, and stopping-distance problems, and the damage may remain hidden until a component fails. Weigh the trailer loaded exactly as it runs, compare every rating, inspect the loading angle and securement layout, and verify that the tow vehicle can legally and safely control the combination.
We carry equipment trailers from Diamond C, H&H, and Liberty in Spencer, Indiana. If you are unsure whether your present setup has enough payload, deck space, axle capacity, braking, tire capacity, or securement points, bring the specifications for the truck, trailer, loader, attachments, and salt load, or bring the trailer in for inspection. We can compare what you are hauling with current equipment, tilt, deckover, and gooseneck options and help you choose the correct model and configuration without inventing a one-size-fits-all answer. Call or text (812) 829-0226 or stop by 291 West State Hwy 46 in Spencer. Winter does not wait, and neither should this conversation.
